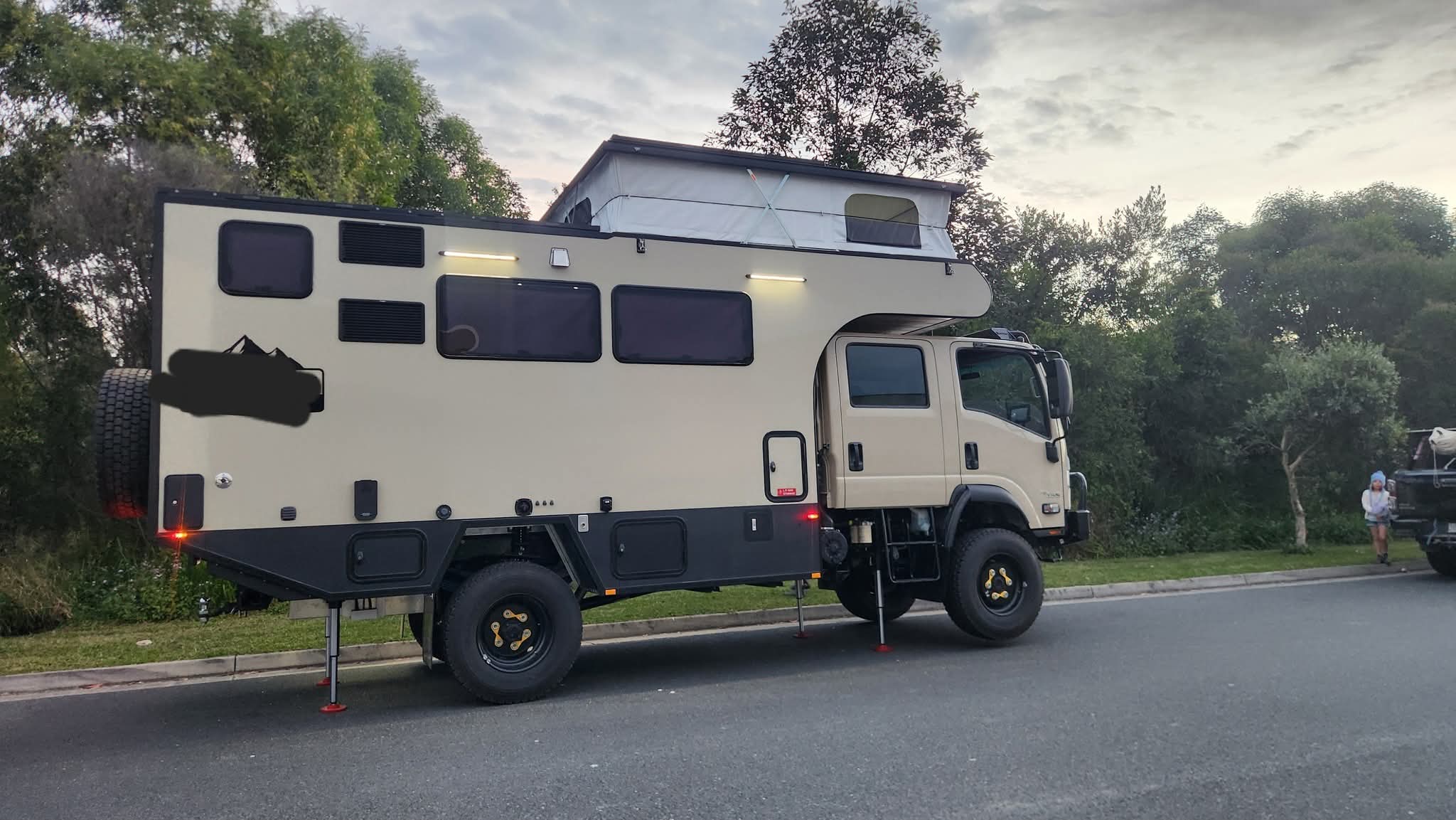

Expedition Off-Road Vehicles

Check out these benefits of the Redfoot ‘G2 Maxi Telescopic’ Levelling System:

• Simple touch, push button Manual Remote RF operation
• Prevents vehicle rocking and motion
• Simple plug and play wiring installation
• Reduced levelling time
• Huge lift capacity up to 28 tonnes and system weight between 100kg-160kg
• One pump operates all cylinders
• Huge cylinder stroke options from 320mm up to 1050mm
• ‘All Retract’ feature so you retract and drive away quickly

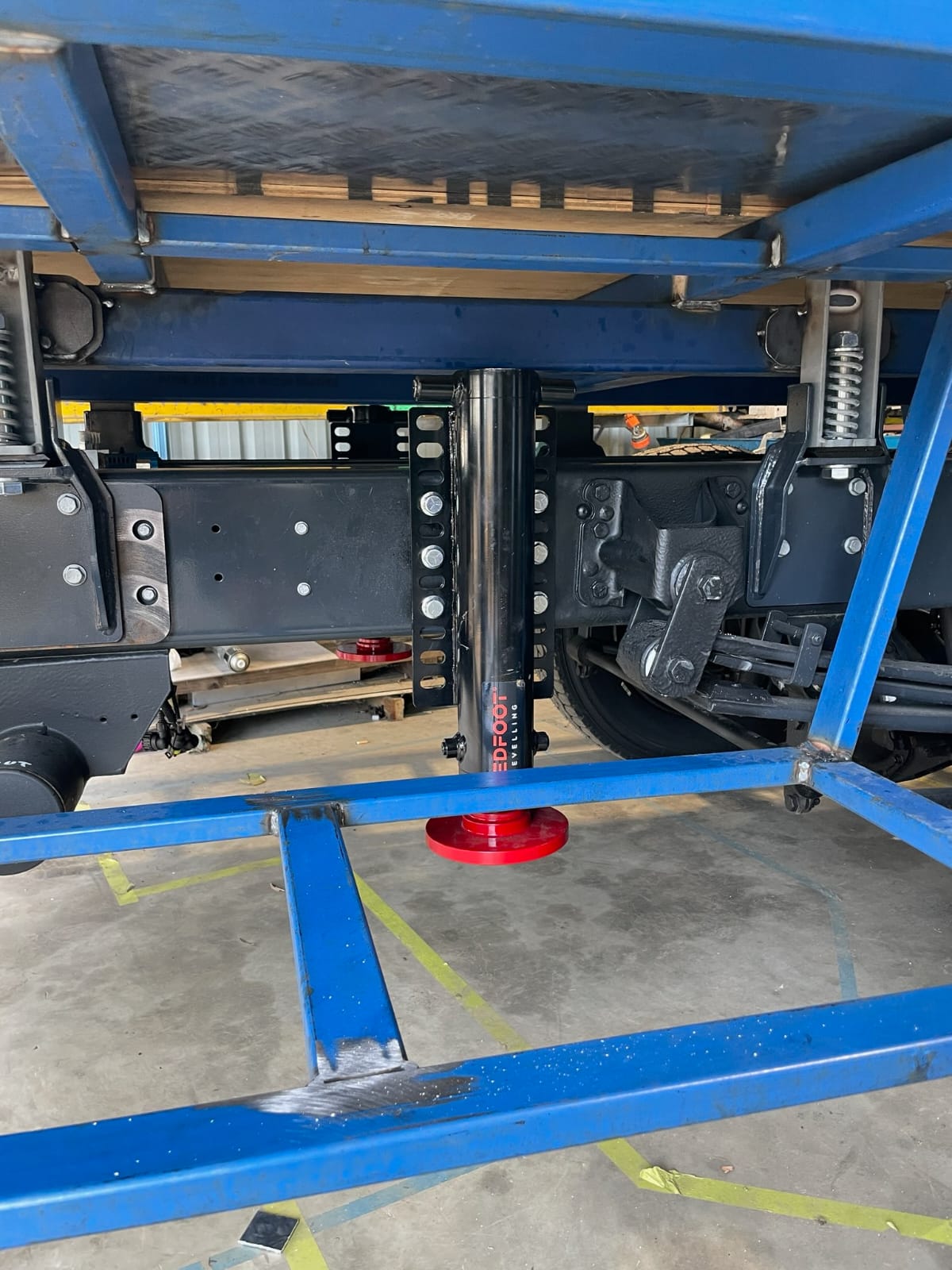

It is no wonder the Redfoot ‘G2 Maxi Telescopic’ Levelling System has quickly become the number one choice for Specialty Vehicle Manufactures. Utilizing four Telescopic, double acting hydraulic cylinders, the Redfoot ‘G2 Maxi Telescopic’ Levelling system can extend and retract the cylinders during any levelling sequence. The remote control one touch operation levels the vehicle, operating each pair of cylinders to reduce any potential chassis twist.

Choosing a custom Redfoot Levelling system is as easy as 1,2,3.

Step 1. Determine Manufacturer including the GVM weight.
Step 2. Determine the type of chassis and measure the underfloor to ground clearance behind each axle as shown in the diagram below:
Step 3. Fill out the [ps2id url=’#contact’]contact form[/ps2id] below so we can assist you with a quote and recommendation.

Investing in a Redfoot Levelling MAXI system will bring years of added enjoyment and improved lifestyle with your mobile Vehicle. In addition to the system prices will have freight costs that will depend on where you live, but generally ranges between $100 to $150. The Redfoot Levelling MAXI systems are delivered in environmentally friendly packaging that is boxed and placed on a skid (half pallet). This ensures every system is well protected during shipping.

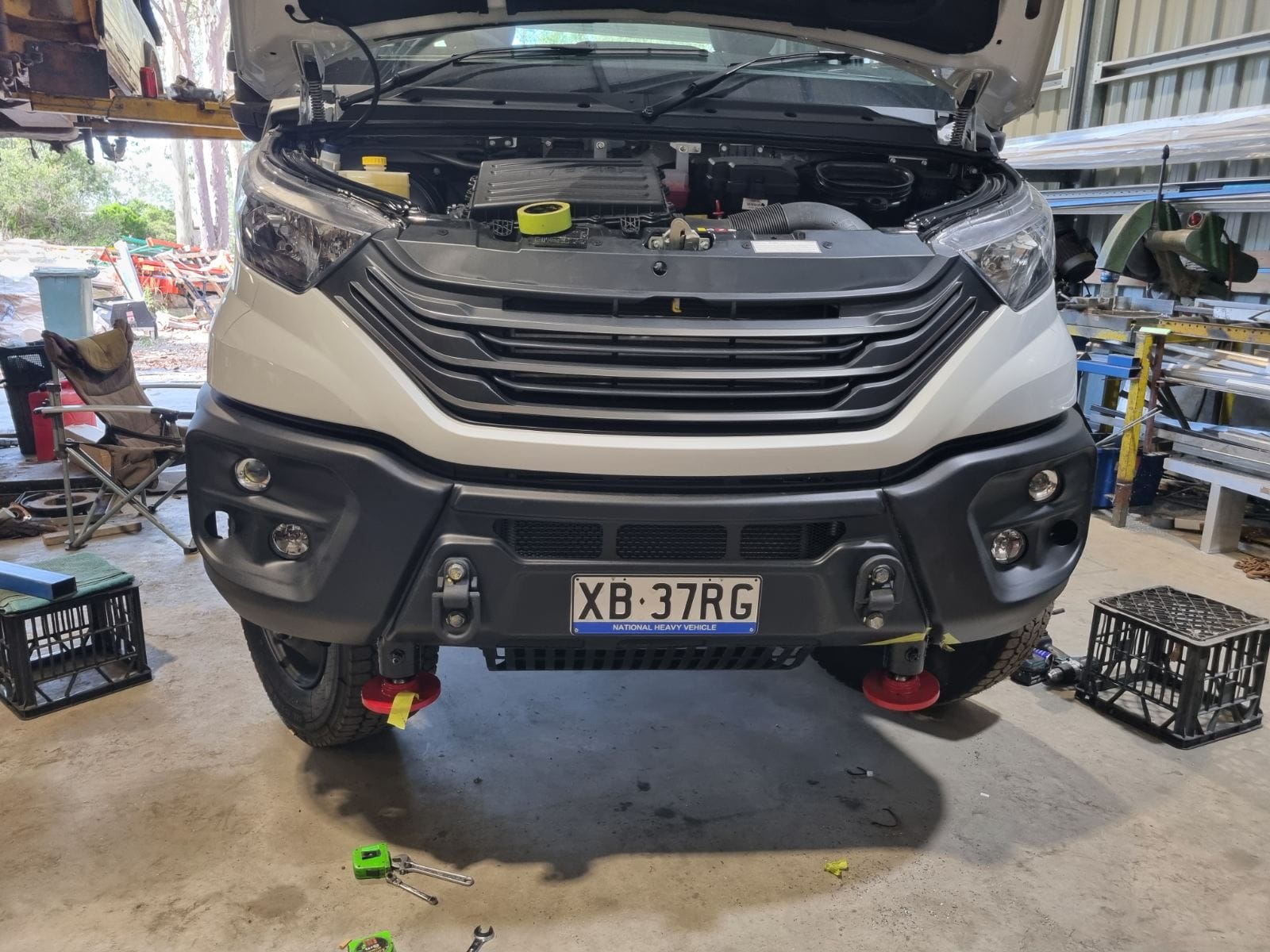

The Redfoot Levelling MAXI system can be DIY installed provided there is a high level of mechanical skill and access to a mechanical workshop with a suitable hoist. We provide a comprehensive installation manual to assist in the fitment process.

We highly recommend the installation to be done by one of our Redfoot Levelling Authorised installers. We have over 60+ Redfoot Levelling installers across Australia that can assist making your concern of installation distant memory. Not all installations are the same, so a solid level of mechanical knowledge is required. Contact one of our authorised installers for a customised quote. Different installers have different cost structures depending on their workshop rental costs and over heads, sometime influenced by their location. Secondly not all installations are the same, for example the location of the hydraulic pump pack can be installed in an existing storage compartment. This would be the most cost effective for installation, however if the owner does not want the pump pack located in a storage compartment, then it can be located between the chassis. This change will require extra work to fabricate a customized mounting bracket and protective cover and accordingly leading to extra costs. Best thing is to talk with your installer about the installation cost.
