Iveco Daily ‘EQ Smart Level’ System
Custom designed solutions for all Iveco Daily chassis Motorhomes
Most advanced levelling solution on the road today!
…Because the Earth is not flat!
All prices in AUD, inclusive of GST.
Delivered across Australia and New Zealand with 60+ approved installers.
The Redfoot Iveco Daily EQ Smart Level solutions are custom designed for your Iveco Daily motorhome. Redfoot have done all the work for you. By custom designed we mean the Redfoot Iveco Daily EQ Smart Level systems include:

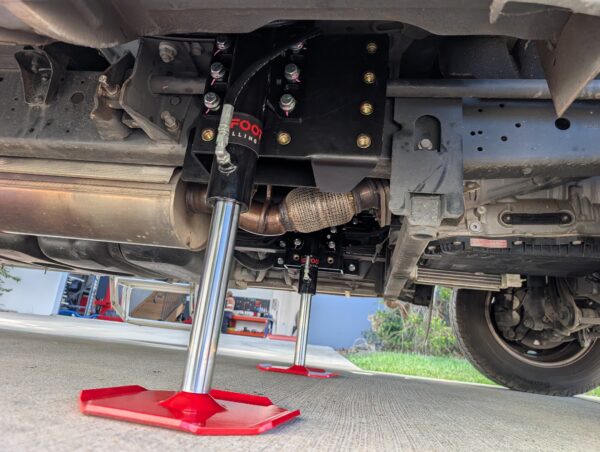

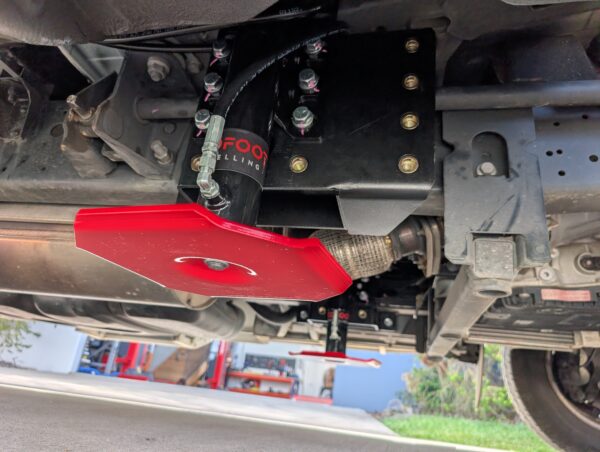

1. Custom brackets engineered and designed specifically to facilitate the easy attachment of the hydraulic cylinders to the Iveco Daily chassis. No welding required!
2. Custom-designed 12-volt hydraulic pump (with manual override) to power all 4 cylinders in extend and retract modes

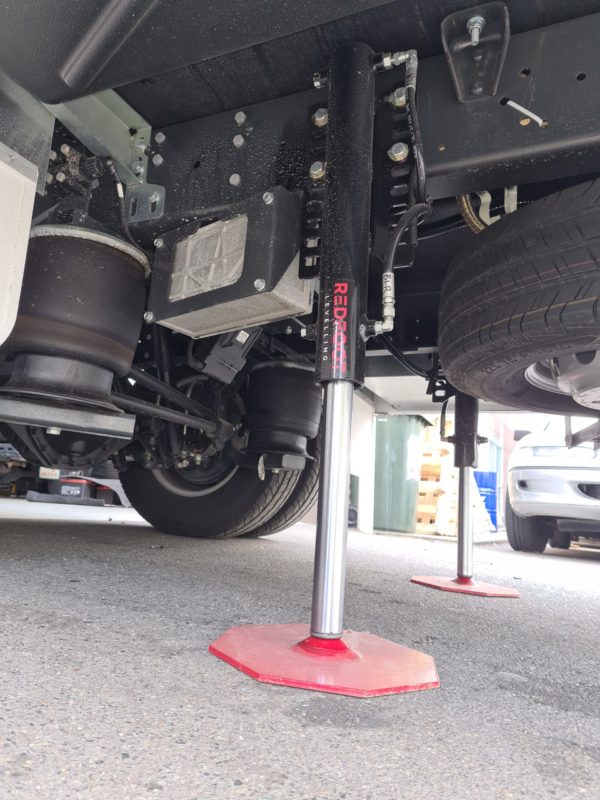

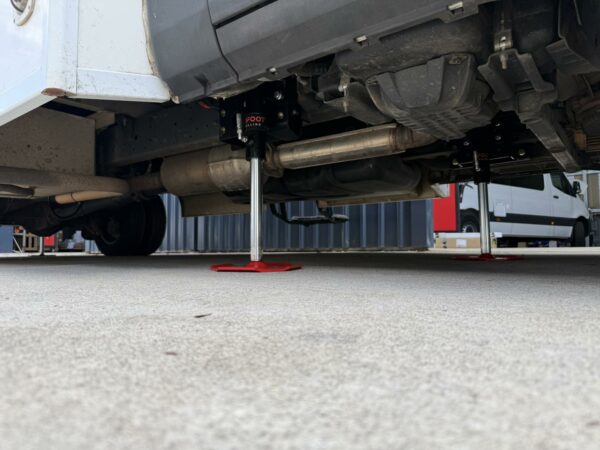

3. Four (4) custom designed hydraulic cylinders that match the wedge shape of the Iveco Daily chassis where the front sits lower to the ground than the rear.
4. Eight custom length hydraulic hoses and connectors that facilitate the flexible placement of the hydraulic pump on the Iveco Daily chassis.
5. Custom bolt sets that facilitate perfect alignment of all systems parts when installing.
In addition to these custom designed features, all Redfoot Iveco Daily Levelling systems come with

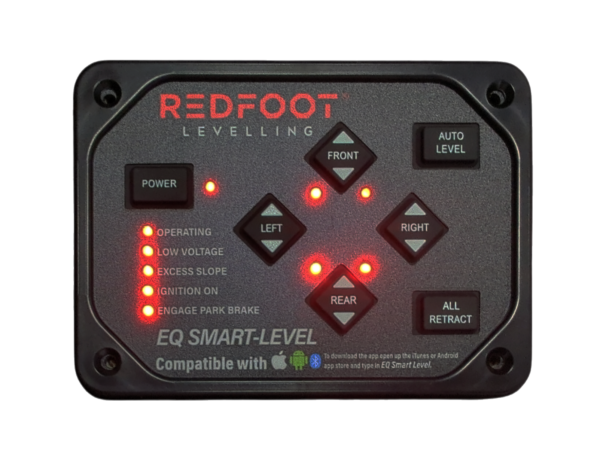

• Redfoot Smart Level control keypad
• Complete pump with manual override
• All required plug and play harness and hoses
• All necessary mounting brackets and hardware fittings
• Bluetooth capability for remote operation with multiple smart devices
The Redfoot Iveco Daily EQ Smart Level Systems are compatible with both iPhone and Android smart phones.
This is the industry’s new standard and it has changed the way leveling is done. Redfoot Smart Level allows you to level your Iveco Daily motorhome with your smart phone by using built in Bluetooth capability. The automatic, one touch operation levels your motorhome in less than two minutes.
This sequential levelling is a patented process that provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while leveling it as low to the ground as possible. It is quick, easy and on the level!
Benefits:
• One touch, push button Auto-Level operation
• Prevents vehicle rocking and motion

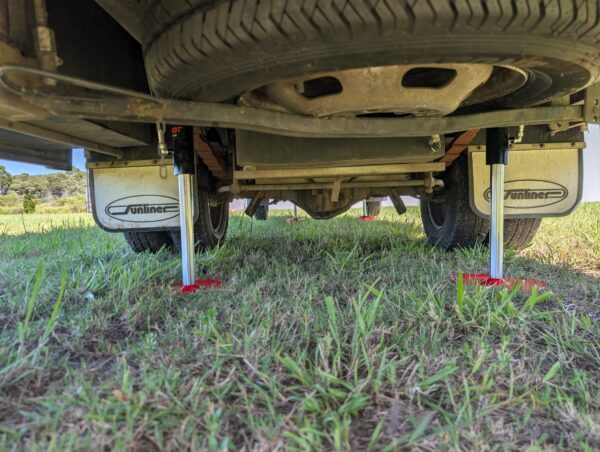

• Huge 10”x 10” foot pad to prevent sinking
• Simple plug and play wiring installation
• Reduces levelling time
• Huge lifting capacity up to 16 tonnes and a system weight of only 90kg
• One pump operates all jacks
• Bluetooth capability to allow remote operation on your smart device
• One touch Redfoot Smart-Level operation
• Field adjustable null ensures levelling to operator established level position
• Audible and visual prompts notify user when leveling is in progress and complete
• Stow legs quickly and easily with “All Retract” feature
• Standard with manual override

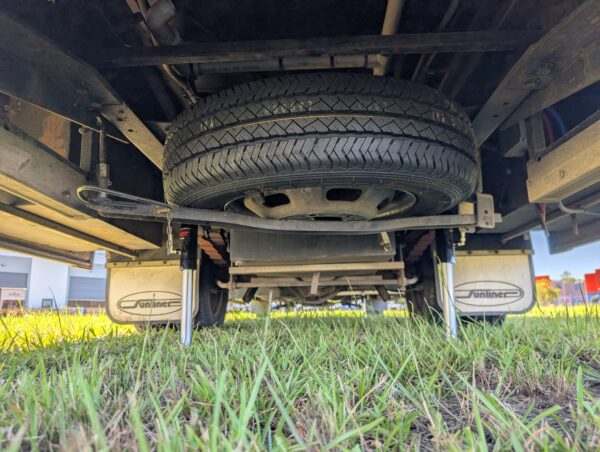

It is no wonder the Redfoot Iveco Daily Levelling Systems has quickly become the number one choice for Iveco Daily Owners. Utilizing four double acting, single stage hydraulic cylinders, the Redfoot Iveco Daily Levelling system can extend and retract the legs during the levelling sequence. The automatic, one touch operation levels an Iveco Daily motorhome in less than two minutes, operating each leg independently in a sequential process. The auto-levelling tolerance measures 0.5 degrees over 1m, making finding level an experience easily achieved in the shortest time possible.
Choosing the custom Redfoot Iveco Daily Levelling system is as easy as 1,2,3.
Step 1. Determine if your Iveco Daily Chassis is a 70C, or a 50C
Step 2. Determine the year of manufacture so you can match the Redfoot Iveco Daily Kit to your chassis, Pre 2015, post January 2015 or post January 2021. Note that the Iveco Daily Chassis design changed effective January 2015 so the Redfoot brackets had to change. After Jan. 2021 there were further changes.
Step 3. Confirm with the list below that sets out the Chassis type, Manufacturer, and Motorhome model.
Investing in a Redfoot Iveco Daily Levelling System will bring years of added enjoyment and improved lifestyle with your motorhome. The system prices are set out above. In addition to the system prices will be freight and that depends on where you live but generally ranges between $100 to $150. The Redfoot systems are delivered in environmentally friendly packaging that is boxed and placed on a skid (half pallet). This ensures every system is well protected during shipping.
The Redfoot systems can be DIY installed provided there is a good level of mechanical skills available, and access to a mechanical workshop with suitable hoists. We provide a comprehensive installation manual.

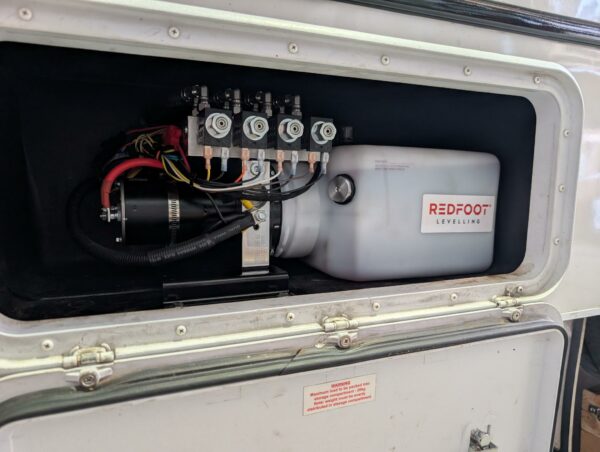

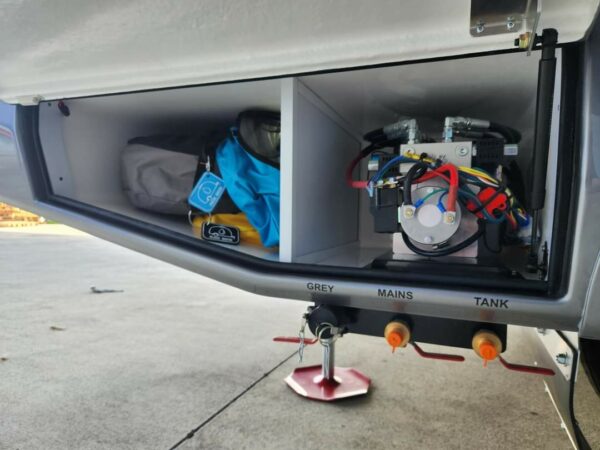

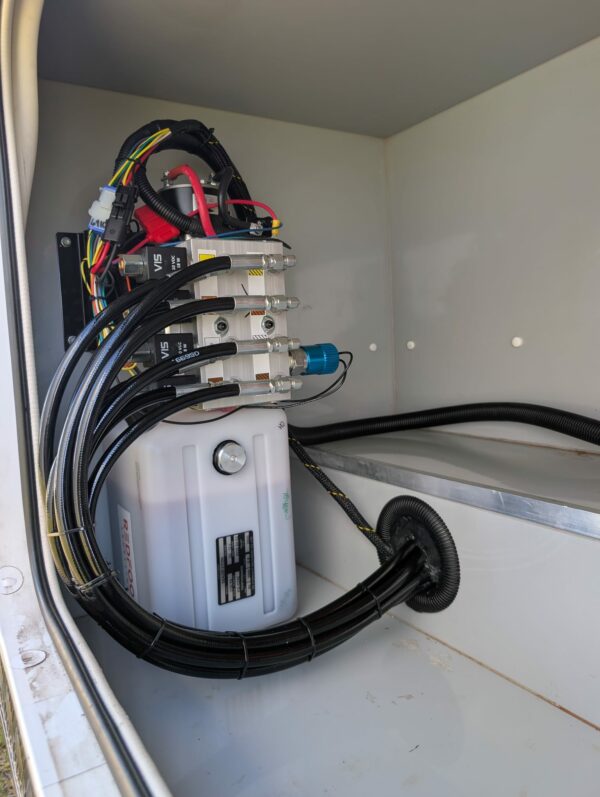

We recommend the installation is done by one of our approved installers. Not all installations are the same, so a solid level of mechanical knowledge is required. Contact one of our authorised installers for a customised quote. Different installers have different cost structures, e.g. Sydney costs versus say more country areas where costs can be lower. Secondly, not all installations are the same. For example, the location of the hydraulic pump. Normally the pump is located in a storage compartment, however if the owner does not want the pump in a storage compartment, then it can be located under the chassis. This will require extra work to build a protective box and accordingly lead to extra cost. Best thing is to talk with your installer about the installation cost.
Bracket Installation Manuals
Pre-2015 50C Bracket Installation Manual
Post-2015 50C Bracket Installation Manual
2021 50C Bracket Installation Manual
Pre-2015 70C Bracket Installation Manual
Post-2015 70C Bracket Installation Manual
2021 70C Bracket Installation Manual
Redfoot Levelling EQ System
EQ Smart Level Operation
