Mercedes Benz Sprinter ‘EQ Smart Level’ System

The Redfoot Mercedes Sprinter EQ Smart Level solutions are custom designed for your Sprinter Motorhome. Redfoot have done all the work for you. By custom designed we mean the Redfoot Mercedes Sprinter EQ Smart Level systems include:

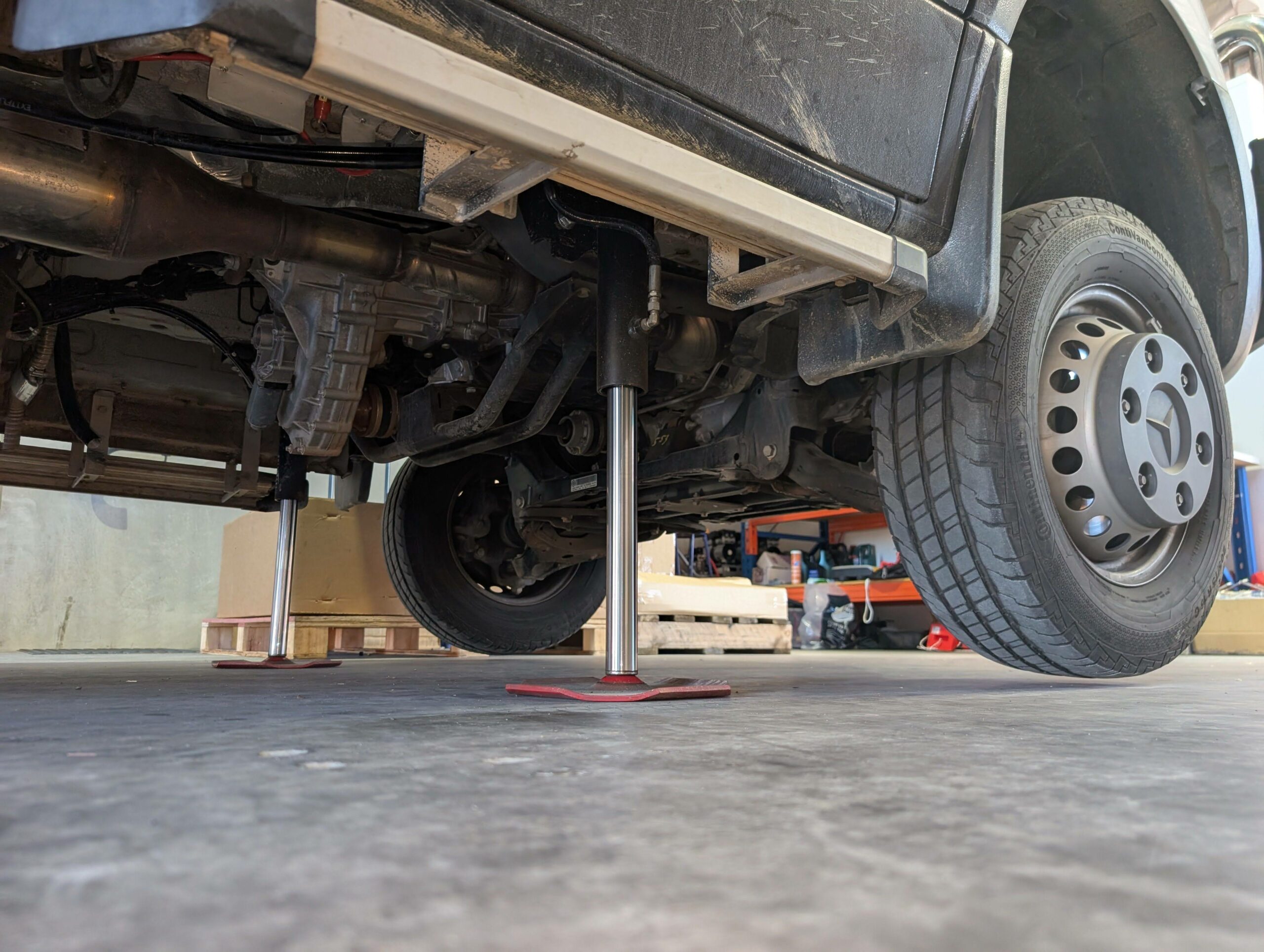

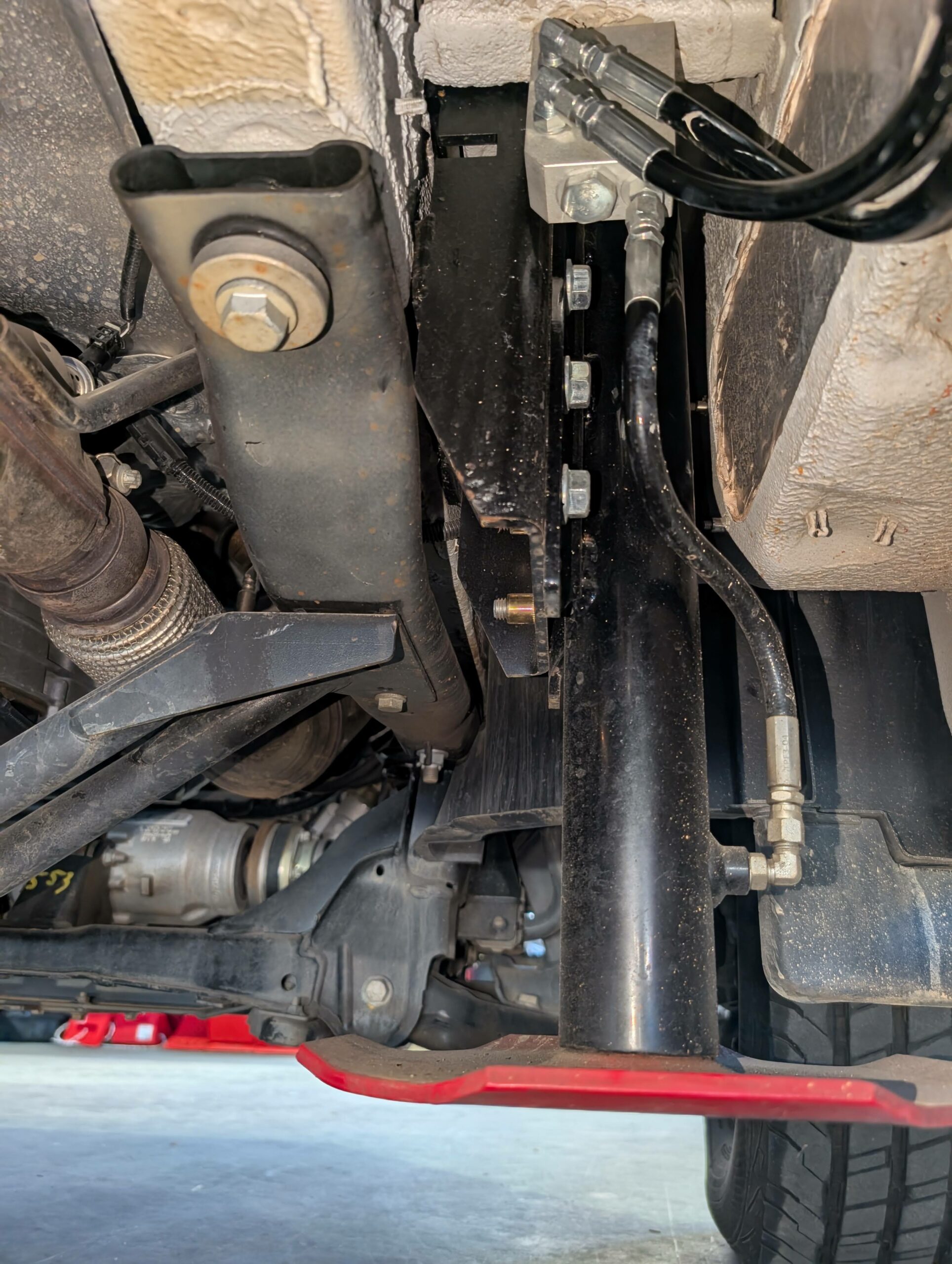

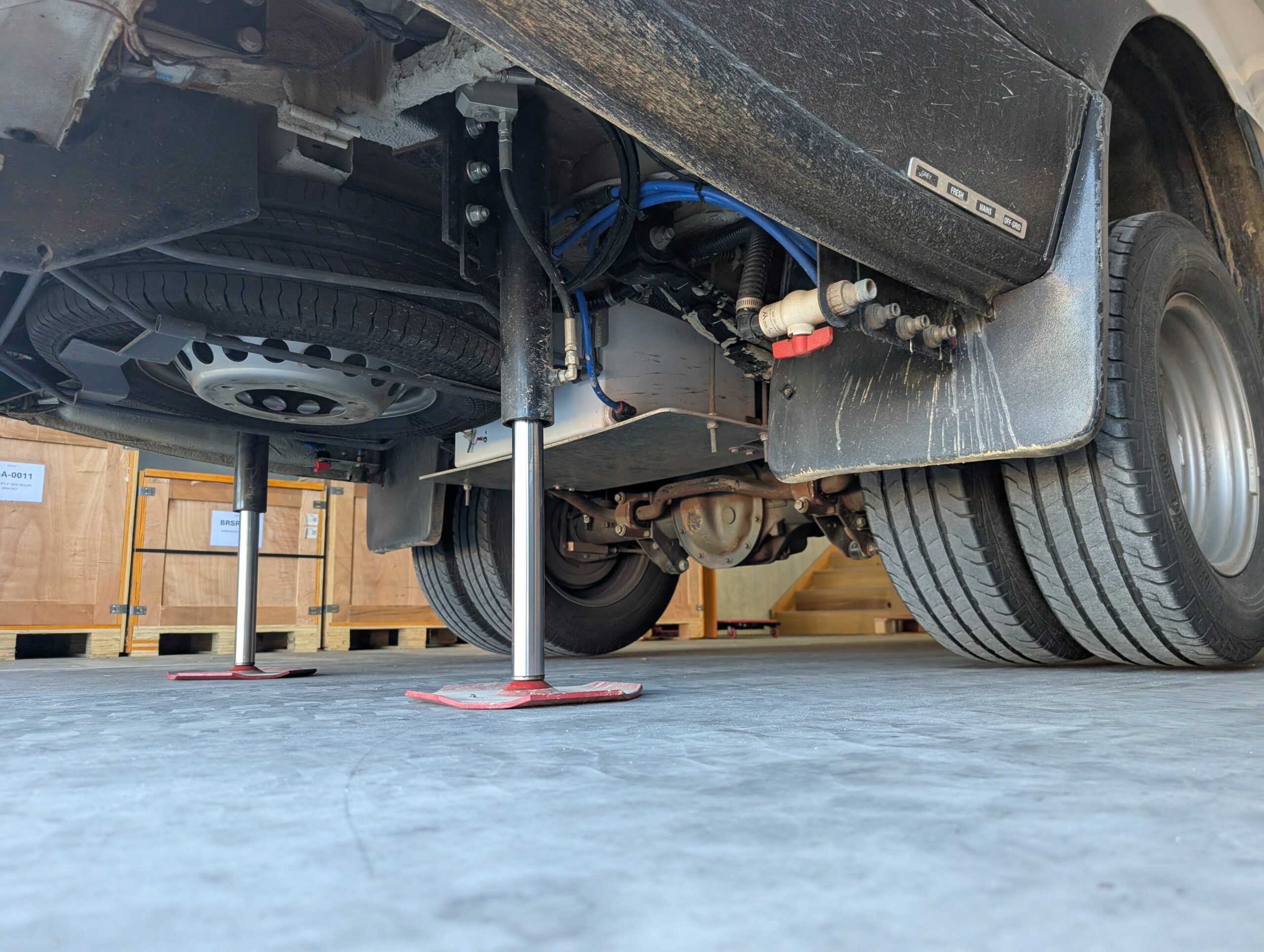

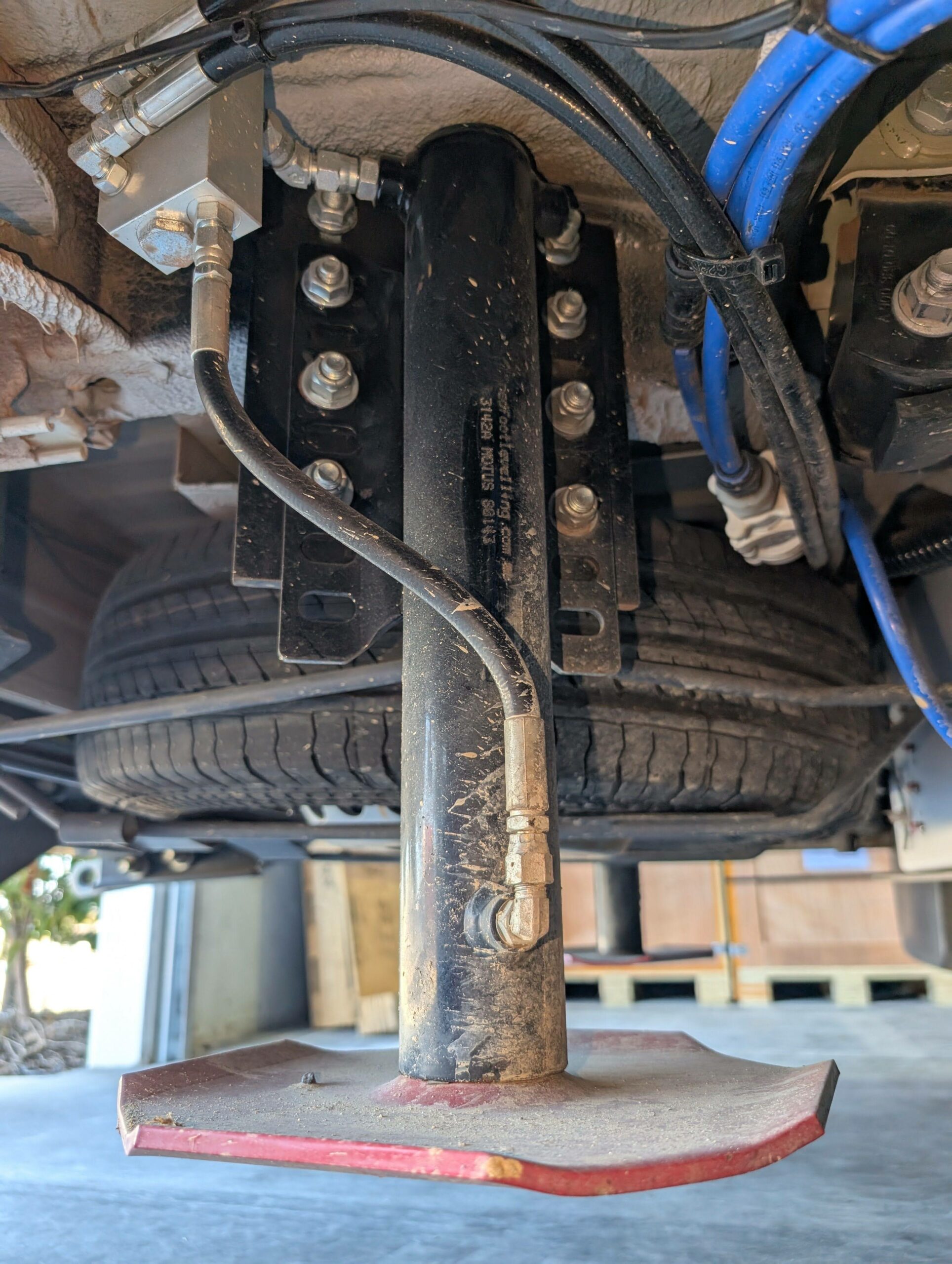

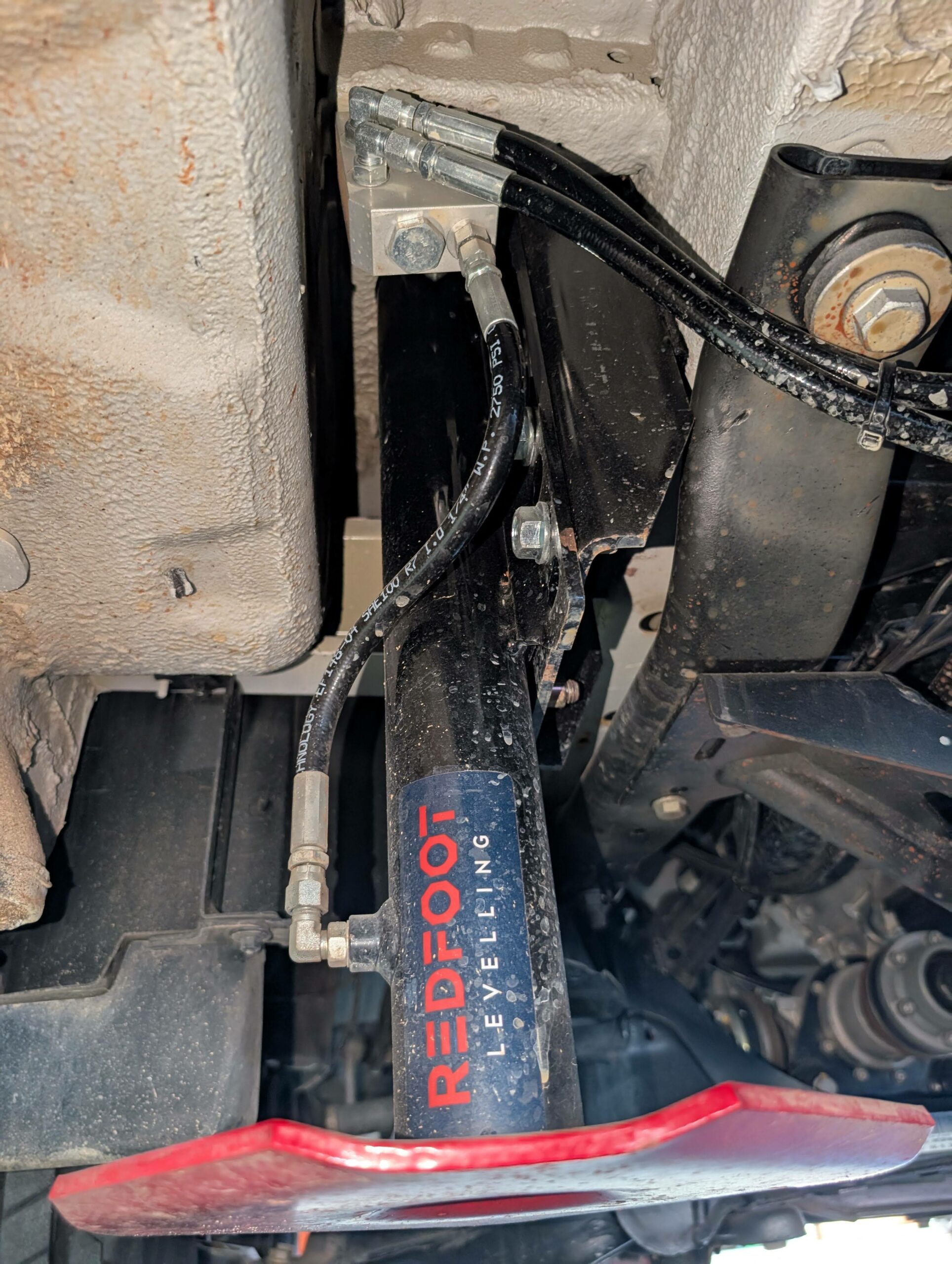

1. Custom brackets that are designed specifically to facilitate the easy attachment of the hydraulic cylinders to the Mercedes Sprinter chassis. No welding required!
2. Custom-designed 12-volt hydraulic pump (with manual override) to power all 4 cylinders in extend and retract modes
3. Four custom-designed hydraulic cylinders that match the wedge shape of the Sprinter Chassis where the front sits lower to the ground than the rear
4. Eight custom length hydraulic hoses and connectors that facilitate the flexible placement of the hydraulic pump on the Sprinter Chassis.
5. Custom bolt sets that facilitate perfect alignment of all systems parts

In addition to these custom designed features, all Redfoot Mercedes Sprinter Levelling systems come with

• Redfoot Smart Level controls
• Complete pump with manual override
• All required harness and hoses
• All necessary mounting brackets and hardware
• Bluetooth capability

The Redfoot Mercedes Sprinter EQ Smart Level Systems are compatible with both iPhone and Android smart phones.

This is the industry’s new standard and it has changed the way leveling is done. Redfoot Smart Level allows you to level your motorhome with your smart phone by using built in Bluetooth capability.  The automatic, one touch operation levels your motorhome in less than two minutes.

This sequential leveling is a patented process that provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while leveling it as low to the ground as possible. It is quick, easy and on the level!

Benefits:

• One touch, push button Auto-Level operation
• Prevents vehicle rocking and motion

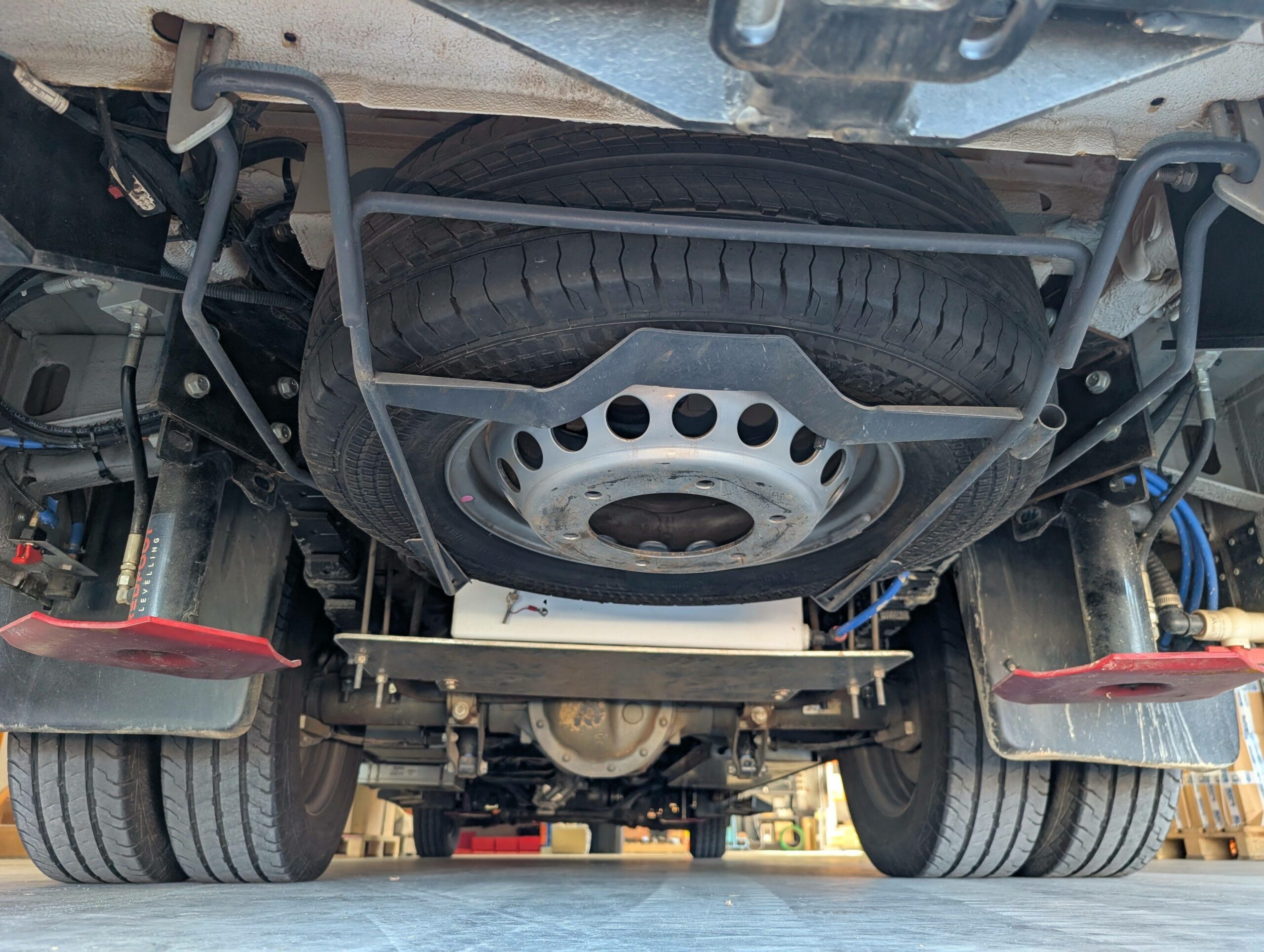

• Huge 10”x 10” foot pad to prevent sinking
• Simple plug and play wiring installation
• Reduces levelling time
• Huge lifting capacity up to 16 tonnes and a system weight of only 90kg
• One pump operates all jacks
• Bluetooth capability to allow remote operation from your smart device
• One touch Redfoot Smart-Level operation
• Field adjustable null ensures levelling to operator established level position
• Audible and visual prompts notify user when leveling is in progress and complete
• Stow legs quickly and easily with ‘All-Retract’ feature
• Standard with manual override

It is no wonder the Redfoot Mercedes Sprinter EQ Smart Level Systems has quickly become the number one choice for Mercedes Benz Sprinter owners. Utilizing four double acting, single stage hydraulic cylinders, the Redfoot Mercedes Benz Sprinter EQ Smart Level system can extend and retract the legs during the levelling sequence. The automatic, one touch operation levels a motorhome in less than two minutes, operating each leg independently in a sequential process. The auto-levelling tolerance measures 0.5 degrees over 1m, making finding level an experience easily achieved in the shortest time possible.

Choosing the custom Redfoot Sprinter Levelling system is as easy as 1,2,3.

Step 1. Determine Manufacturer. E.g. Mercedes Benz Sprinter chassis 519 CDI
Step 2. Determine Model of the motorhome. E.g. Jayco Conquest
Step 3. Confirm the underfloor to ground measurements below, Manufacturer, Model, and Vehicle Type.

Investing in a Redfoot Sprinter EQ Smart Level system will bring years of added enjoyment and improved lifestyle with your motorhome. The system prices are set out above. In addition to the system prices will be freight and that depends on where you live but generally ranges between $100 to $150. The Redfoot systems are delivered in environmentally friendly packaging that is boxed and placed on a skid (half pallet). This ensures every system is well protected during shipping.

The Redfoot systems can be DIY installed provided there is a good level of mechanical skills available, and access to a mechanical workshop with suitable hoists. We provide a comprehensive installation manual.

We recommend the installation is done by one of our approved installers. Not all installations are the same, so a solid level of mechanical knowledge is required. Contact one of our authorised installers for a customised quote. Different installers have different cost structures, e.g. Sydney costs versus say more country areas where costs can be lower. Secondly, not all installations are the same. For example the location of the hydraulic pump. Normally the pump is located in a storage compartment, however if the owner does not want the pump in a storage compartment then it can be located under the chassis. This will require extra work to build a protective box and accordingly lead to extra cost. Best thing is to talk with your installer about the installation cost.
