Mercedes Benz Sprinter ‘AutoLift’ System

For Mercedes Benz Sprinter Motorhomes
0.00 reviews

Custom designed solutions for all Mercedes Benz Sprinter chassis motorhomes

Most advanced levelling solution on the road today!

…Because the Earth is not flat!

$6,695.00

All prices in AUD, inclusive of GST.

Delivered across Australia and New Zealand with 60+ approved installers.

About
Specifications
Installation
Videos
Reviews

redfoot auto elite system

The Redfoot Mercedes Sprinter AutoLift Levelling solutions are custom designed for your Mercedes Sprinter motorhome. Redfoot have done all the work for you. By custom designed we mean the Redfoot Mercedes Sprinter AutoLift Levelling systems include:

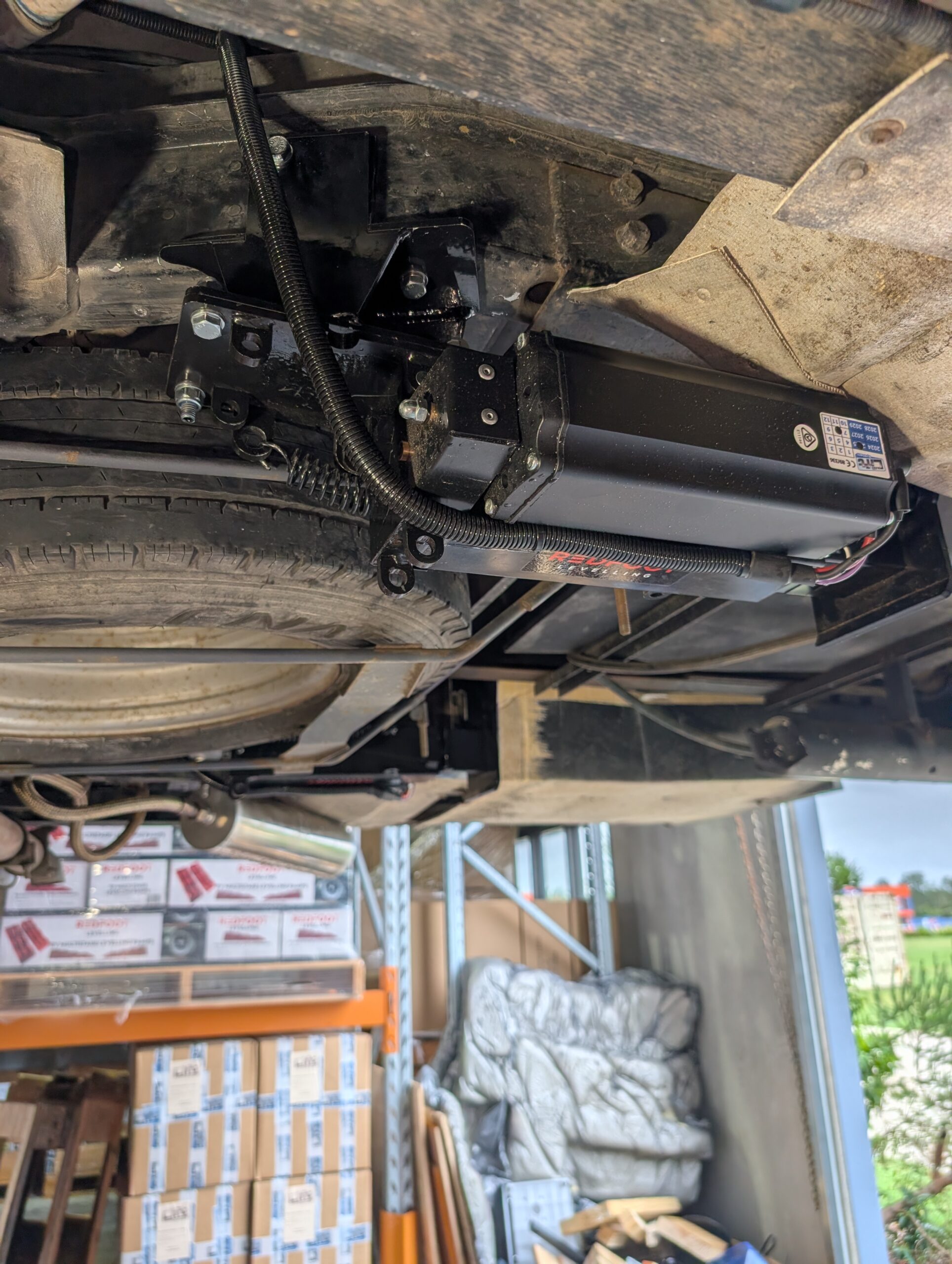

1. Custom Brackets that are designed specifically to facilitate the easy attachment of the power jacks to the Sprinter chassis. No welding required!
2. Custom Designed pre-wired harnessed control box that connects to each powered jack, auxiliary battery and keypad panel.
3. Four custom-designed powered jacks that mechanically retract into the horizontal position while travelling, maximising your undercarriage clearance.
4. Each powered jack can be adjusted by using the custom designed extender spacers provided. Making any height variables achievable.
5. Custom bolt sets that facilitate perfect alignment of all systems parts

In addition to these custom designed features, all Redfoot Mercedes Sprinter AutoLift Levelling systems come with

• Redfoot AutoLift keypad control panel
• Complete with manual override operation
• All required harnesses and connector terminals
• 4 stabiliser pads and placement and retrieve pole
• Includes RF remote control for basic function

The Redfoot Mercedes Sprinter AutoLift Levelling Systems allow you to ‘Auto Level’ and ‘All Retract’ the jacks using the remote control keypad.

This is the industry’s new standard and it has changed the way leveling is done. Redfoot AutoLift levelling system allows you to level your Mercedes Sprinter motorhome by using the automatic one touch operation button, levelling your motorhome in less than two minutes.

This sequential leveling is a patented process that provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while leveling it as low to the ground as possible. It is quick, easy and on the level!

Benefits:

• One touch, push button Auto-Level operation
• Prevents vehicle rocking and motion
• 4x included stabiliser pads to prevent sinking
• Simple plug and play wiring installation
• Reduces levelling time
• Huge lifting capacity up to 6 tonnes and a system weight of only 63kg
• One push button ‘All-Retract’ feature
• Remote Radio Frequency operation
• Auto level display panel
• Audible and visual prompts notify user when levelling is in progress and complete
• Stow legs quickly and easily
• Standard with manual override

It is no wonder the Redfoot AutoLift Levelling System has quickly become the number one choice for Mercedes Sprinter Owners.  The automatic, one touch operation levels a Sprinter motorhome in less than two minutes, operating each leg independently in a sequential process.



Mercedes Sprinter motorhomes in Australia can come in many different configurations. When selecting a levelling system it is important to know the under chassis to ground clearance.

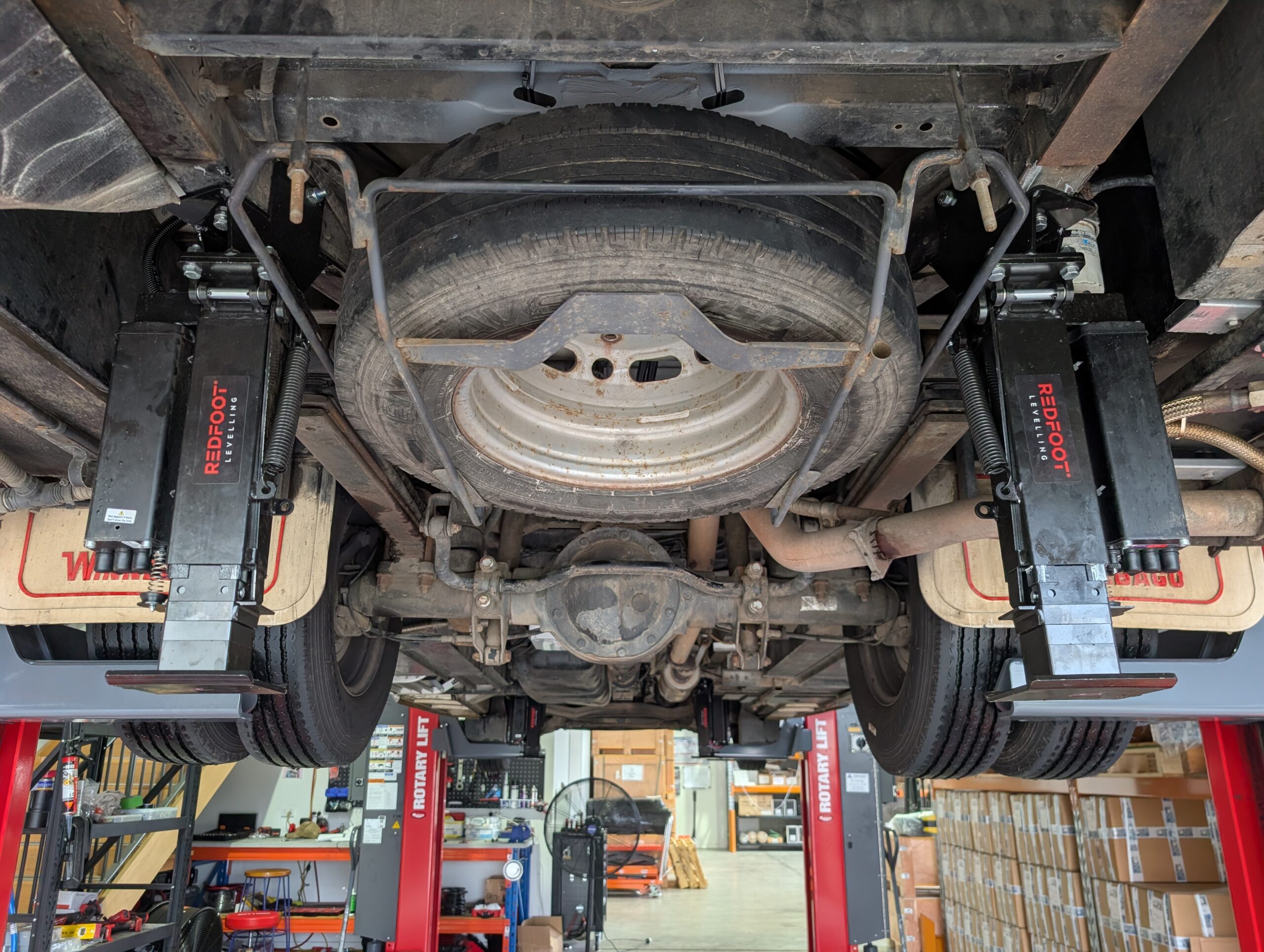

To qualify if your vehicle is suitable, you will need know if you have enough under chassis to ground clearance. The minimum under chassis to ground clearance required is 340mm, if this is not achieved then the vehicle will require a suspension upgrade. Don’t be too concerned as this can be also accommodated prior to installation of the AutoLift system for a small fee. Once you have measured your clearance of more than 340mm, the next step is to look for any obstruction between the chassis rail, directly behind the rear axle. If there is a spare tyre or water tank impeding the location of the rear jacks then the Redfoot AutoLift system will require the individual bracket option for your installation.

Choosing the custom Redfoot Mercedes Sprinter AutoLift levelling system is as easy as 1,2,3,4.

Step 1. Determine the Vehicle Make and Chassis Model. E.g Mercedes Sprinter.

Step 2. Measure the under chassis to ground clearance of more than 340mm as shown below.

Step 3. Once clearance is achieved, check for any existing obstructions directly behind the rear axle that may impeded the jack placement. E.g. Storage bins, water tanks, exhaust or spare tyre. If you are concerned on this contact Redfoot Levelling directly to qualify your concerns prior to placing your order.

Step 4. Now compile your results from steps 1, 2 and 3 and select the Redfoot System above on the add to cart menu.

TO ASSIST WITH YOUR POTENTIAL LEVELLING SOLUTION SIMPLY MEASURE YOUR VEHICLES UNDERFLOOR TO GROUND HEIGHT BEHIND BOTH FRONT AND REAR AXLES. THIS WILL ENSURE THE LEVELLING SYSTEM SUPPLIED WILL FIT YOUR VEHILCE. FEEL FREE TO PROVIDE THIS MEASUREMENT TO US PRIOR TO ORDERING YOUR LEVELLING SYSTEM.

Investing in a Redfoot Mercedes Sprinter AutoLift Levelling system will bring years of added enjoyment and improved lifestyle with your Mercedes Sprinter motorhome. The system prices are set out above. In addition to the system prices will be freight and that depends on where you live but generally ranges between $100 to $150. The Redfoot systems are delivered in environmentally friendly packaging that is boxed and placed on a skid (half pallet). This ensures every system is well protected during shipping.



The Redfoot systems can be DIY installed provided there is a good level of mechanical skills available, and access to a mechanical workshop with suitable hoists. We provide a comprehensive installation manual.



We recommend the installation is done by one of our approved installers. Not all installations are the same, so a solid level of mechanical knowledge is required. Contact one of our authorised installers for a customised quote. Different installers have different cost structures, e.g. Sydney costs versus say more country areas where costs can be lower. Secondly, not all installations are the same. For example there can be existing obstructions such as water tanks, plumbing or spare tyres.  In this case they maybe extra works required to accommodate these variations. Best thing is to talk with your installer about the installation costs upon inspection or prior to quoting the job.

Installation Manual

Troubleshooting Guide

Bracket Installation

Mercedes Sprinter ALKO Chassis

Mercedes Sprinter VAN or CAB Chassis

Mercedes Sprinter Front Wheel Drive

Mercedes Sprinter SLC Chassis

Redfoot Levelling AutoLift for motorhomes

AutoLift - How to Auto Level using keypad

AutoLift - How to Manually Level using Keypad

AutoLift Retracting and Stowing jacks using keypad
